Elements Pinball Machine

Monsters and chaos! The five elements are out of whack, and the world has been thrown into ruin. Not a good day. But you can set things right with three warriors: the flying Valkyrie, the stealthy Ninja, and the mighty Knight. Toss each into battle, and hope to crush the elemental monsters of ruin. Or send your warriors for some vital training. Seek inner peace. Dodge thieves (or chase them down). Chop down a very stubborn tree. Smack a bunch of Newton balls around. Mint some coins and get tossed from an upper playfield. Hidden aliens might even come to your rescue, and there are a bunch of other things vying for your attention; you might just forget to save the world altogether.

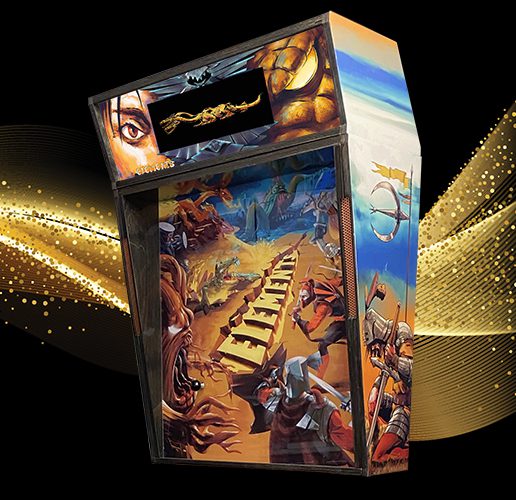

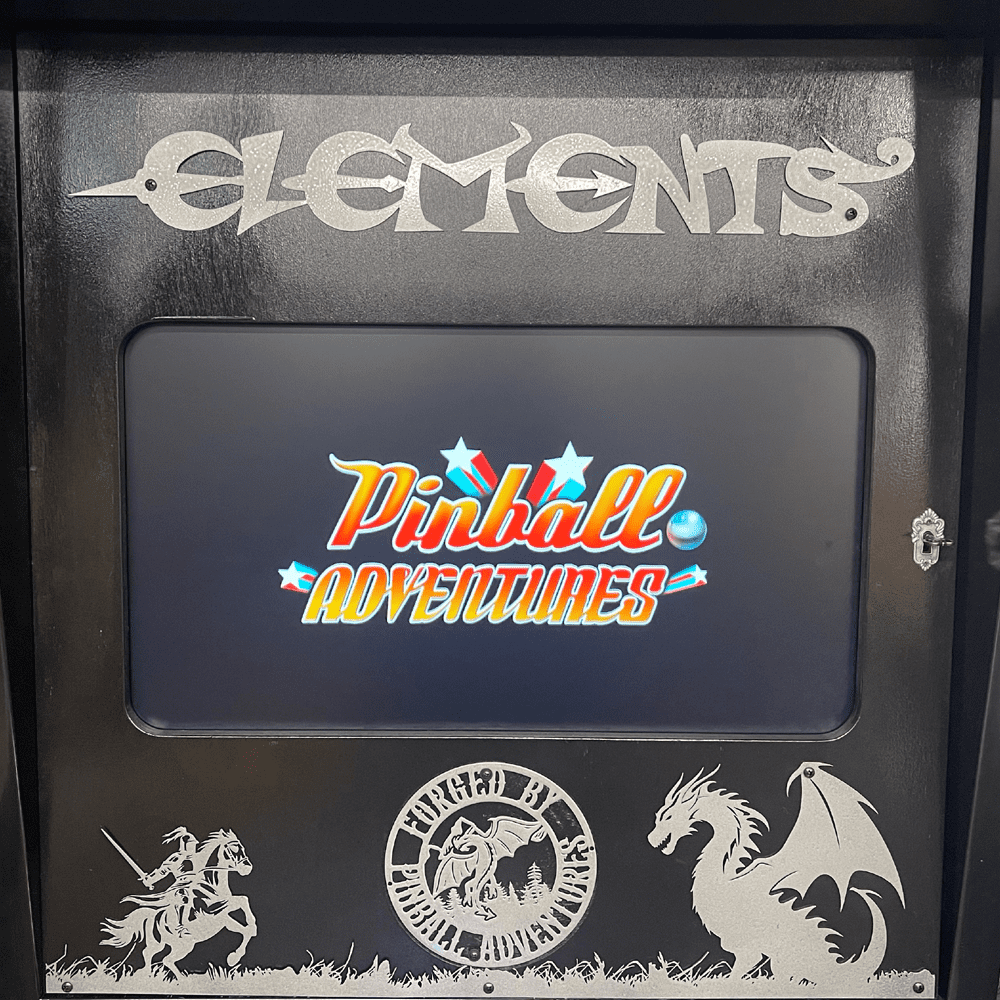

Unique BackBox with Our Duel Front Side Speakers

To keep you going, this adventure is chock full of video and sound. You’ll be dazzled with the vivid 24″ LCD monitor, and your heart can pump to the thump of a subwoofer (plus 2-channel stereo)! You can even add your own music. And all that is housed in a spectacular, quality machine made with dedication to detail, top to bottom. Elements is built with a passion for the good stuff. Officially, the good stuff includes: russian baltic birch (doesn’t that sound fancy?), high quality prints to show off the monster-kicking art of ATALOGY, a generous count of clear coats, powder coated metal, large precision-cut metal decals, full-size metal helmet, metal sword ramp, probably more stuff with the word “metal” in it, a pulsing infinity mirror, three flippers, super pop, twelve targets, top-shelf electronics, and a sass-mouthed valkyrie.

Original Side & inside Art

elements topper

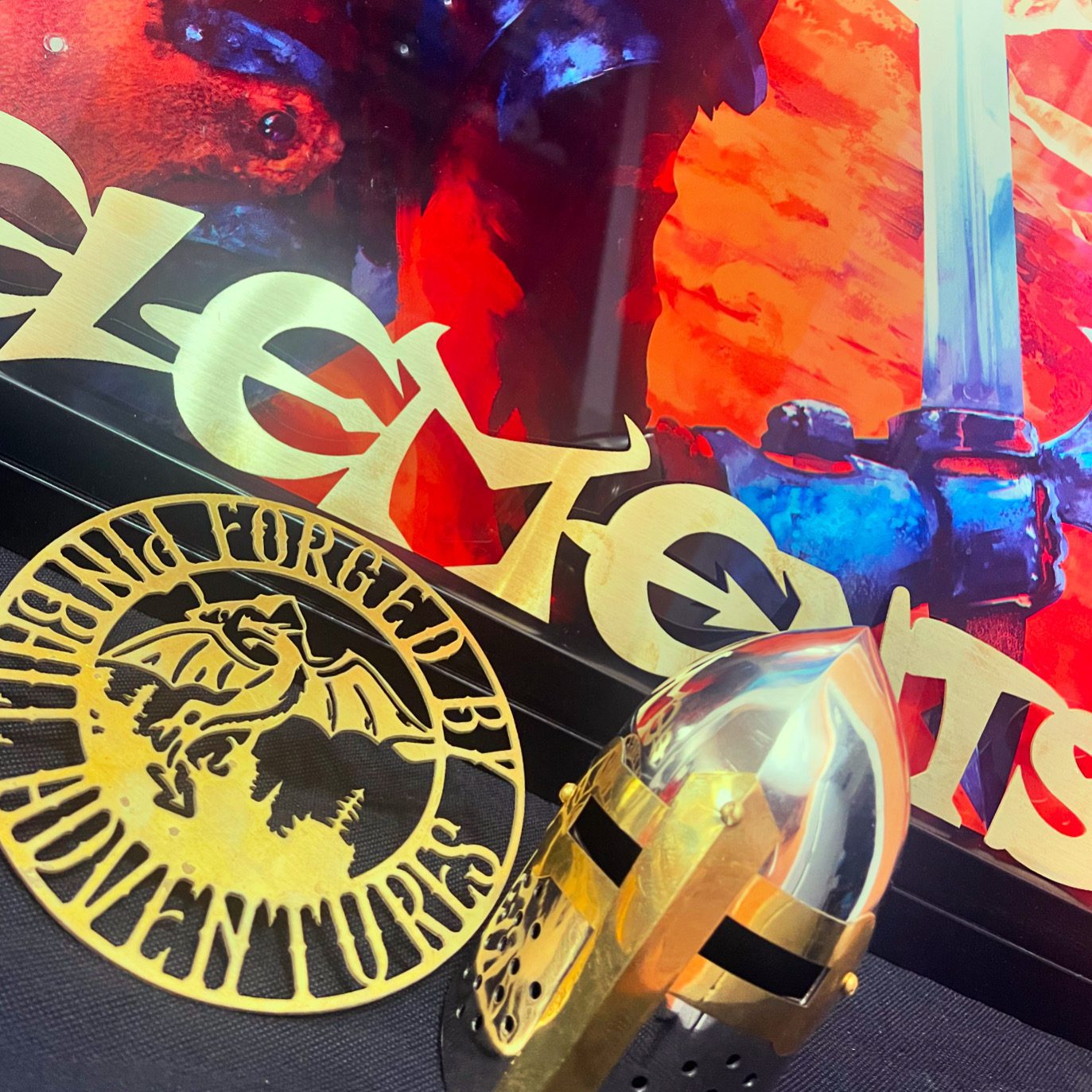

Brass or Powder Coated Logos

We have enhanced your game with our visually striking Custom Brass Logos or powder coated metal for an aesthetic, powerful visual impact, adding to the look and feel of our medieval themed game.

Unique Three Warriors and Skill shots

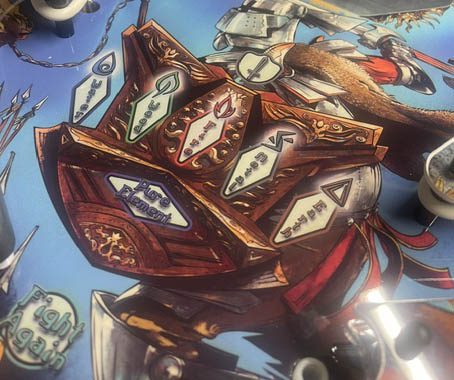

The big quest starts with choosing your difficulty, and then you’re on your own. Well, except for a nagging wizard. “Shoot the scoop!” And he’s right: from the scoop you pick training, or battle. One by one defeat these challenges, and build yourself up to the final, heroic fight for the Pure element. If you can survive the impossible, the “mirror of infinity” will once again be glowing white, and all will know your unbelievable achievement! On the path to victory, five training modes are available to you, and ten battle modes (across the two difficulties). These form the core of what needs to get done, and are nestled in with many other modes and rewards.

Element Monsters

Five Element monsters capable of dealing devastating damage to anybody who dares to face them in battle! Monsters forged in stone, metal and fire are ready to crush and burn your warriors. Not a boring beginner’s game, and not an experts-only challenge. Elements is perfect for everyone, so buy one and save the world! Right now! The world! Probably worth saving!

elements topper
elements topper
elements topper
elements topper
elements topper

Our new PINBOARD System

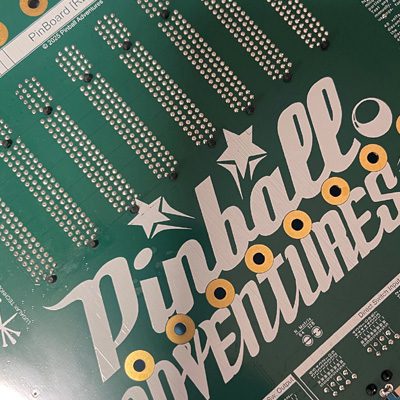

Introducing the PinBoard

A control board is the heart of a pinball machine, pumping the coils while collecting all the sensor and switch information. Our PinBoard is a new, modern, and luxury control board that forms the heart of our own machines, yet it has features that make it useful for homebrew builders too. Some of the ways in which the PinBoard takes what a control board does and polishes it.

Collecting Data

The slimmest version of the PinBoard can handle up to 128 switches, which is expandable. Each is checked thousands of times a second, and the two industry-favorite options are available on every board: direct switches, and matrix switches. The PinBoard itself has buttons to allow navigating various controls and options, especially useful for the homebrewer, or for walking a customer through service calls: get to the technical data without a fuss. Would you like to know how healthy some coil is? Power usage is tracked by the PinBoard, so why not just see how much power is going through that coil?

Cannons Away!

Coils gotta coil. The PinBoard can drive your 12V or 48V noise-makers in a classic on and off fashion, and it can drive them using PWM, or Pulse Width Modulation: by turning a coil on and off several thousand times a second, you get fantastic control over your coils and their power. And if you want better accuracy with timing those coils, our PinBoard can trigger and stop coils with sub-millisecond precision. A thousand times faster than you can blink. On the technical end, we’ve made our coil drivers stronger and more efficient in how they “flip the switch”, using full MOSFET gate drivers for our 48V coil cards, which among other things helps preserve those MOSFETS, even though they’re already rated for much heavier duty. As is everything in our design.

Feedback

On the PinBoard itself is an LED for every switch (including the matrix switches!) for instant confirmation that each one is working. And every coil driver also sports its own LED to show when that coil is on. The PinBoard has a tiny DMD (dot matrix display) for basic messages and options, where it can show you charts of power usage, trigger history of a switch, and the like. At a glance you can see if a fuse is burnt, interlock status, and that the various parts of the board are all working as they should. LED feedback is provided for every major component of the PinBoard.

Safety

As mentioned before, our PinBoard tracks power usage, and it does it separately for 12V and 48V. If things are going in the wrong direction, such as a failing coil or bad wire insulation, the PinBoard can “shut it down!” and quickly at that. Our interlock also takes safety a step beyond the usual: a disconnected interlock on the PinBoard doesn’t just prevent the brains on the board from trying to fire a coil, it prevents any coil cards from carrying through with those instructions. For a machine that purposefully turns on coils that can catch fire in seconds, we can’t imagine any other way. Can you?

Add it On

The PinBoard is modular, meaning you can add on parts as needed. The difference with some designs is that our PinBoard self-contains those add on parts, as “cards”, like in a classic computer. This cuts down on wiring, space, assembly problems, wear problems, etc. Modularity shouldn’t mean more “spaghetti” in your machine, it should just mean more. All coil drivers take the form of cards, specialized for 12V or 48V. If you want something unusual, like driving a servo motor, having WiFi connectivity, or reading a thousand switches, those are cards too. And our card system makes those add ons cheaper, and very importantly, replaceable. What happens if you connect a coil driver to a dead short and refuse to stop until that driver packs it in? Well, pull out that card and slap in a new one: easy.

Unique YOM System

With our new YOM (Your own Music) System, you are now able to upload your favourite songs as the background music to our game. Once your music is uploaded via USB, you can use chose a single song or multiple songs to play in order or randomly.                            Just one of the many unique assets we have added to this pinball machine.

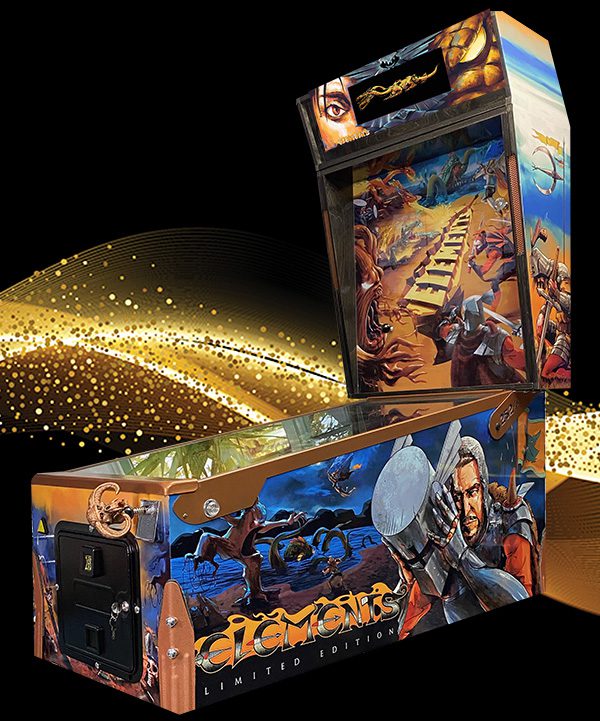

Knight Edition

element_side

Russian Baltic Birch cabinet with direct/decal printed art of the Knight, sealed and topped with several coats of clear coat. Inside graphics, powder coated  cabinet and playfield trim, legs, enhanced sound system with subwoofer.  We are proud that Joseph José worked with us on his first pinball machine design, and we are always excited to see ATALOGY‘s amazing artwork.

elements topper

Elements Pinball Maching

Elements is an original pinball machine concept that features a different unique adventure with every play.  Elements delivers a professional solid platform that cradles a fun yet challenging playfield that appeals to all.              Players have a choice using the flippers to choose the Hard (Warrior) or Easy (Newcomer) The machine asks player to choose their skill level.

Enter the Training Scoop starts a mode making the player chose between Training or Battle to reach the Pure Element.

A Hugh 24″ LCD display is mounted in the backbox, playing randomized full color animations when completing the objectives of the game.

Features & Spec’s

Game Features:  (FINISHED CODE) Added 5 first owner modes

  1. Three Flippers and Mini Upper Playfield
  2. Fire Element Sword Ramp
  3. Timber Land Super Pop
  4. 7X Stationary / 5X-Stand-up Targets
  5. 10X Newton Balls

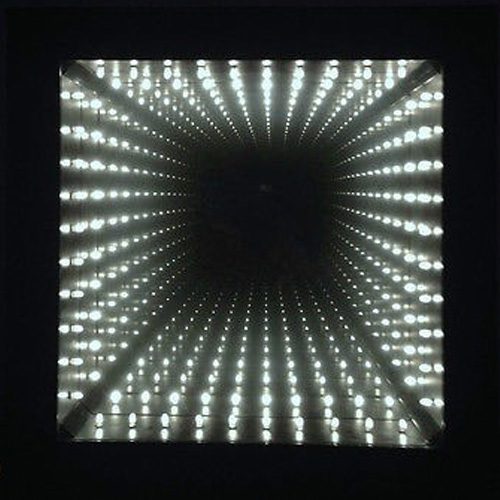

  6. Pulsing Infinity Mirror
  7. Kickback
  8. Gift from God Multi-ball
  9. Metal Helmet and Sword Ramp

Year to be Released: 2024 4th Quater                                                                             Game Dimensions: 28.5″ W x 51.5″ D x 74.5″ H  Weight: 250 lbs

elements topper
elements topper

Pricing, Shipping & Distributors

Elements Pinball (Knight Edition)   $8,000.00 to $10,000 USD Price Pending.

All orders will be responsible for all shipping, duties and taxes applicable to your country.

The machine is packed in a custom designed box that measures 31.5” x 31.5” x 54” high. The box weighs 300 pounds with the game inside. The box is shipped on a wooden custom pallet and the box is strapped to that pallet.

USA Distributor            https://www.madpinball.com

EU Distributor               https://www.rs-pinball.at
